Framex FT72: High-Performance Aluminum Systems for Sustainable Architecture

An advanced, highly versatile thermally broken window and door system engineered for modern energy-efficient buildings. Offering a balanced 72 mm profile depth and a robust multi-contour EPDM sealing architecture, Framex FT72 delivers superior heat retention, exceptional structural stability, and class-leading draft protection for complex residential and commercial projects.

U-Factor:

0.16 (Optimized thermal energy performance with high-efficiency triple glazing)

Up to 47 dB Sound Reduction (Exceptional acoustic insulation for absolute quiet)

Up to 76% Energy Savings (Maximum efficiency for sustainable living)

Request a Quote

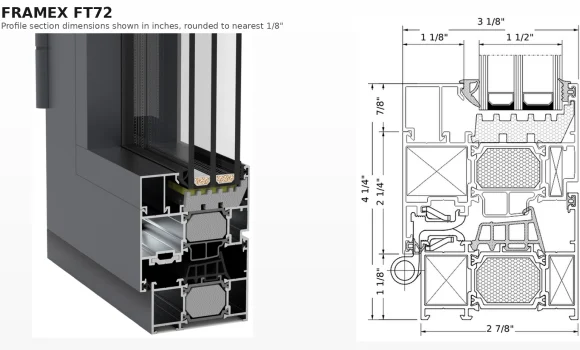

Engineered Precision with High-Performance Structural Thermal Breaks

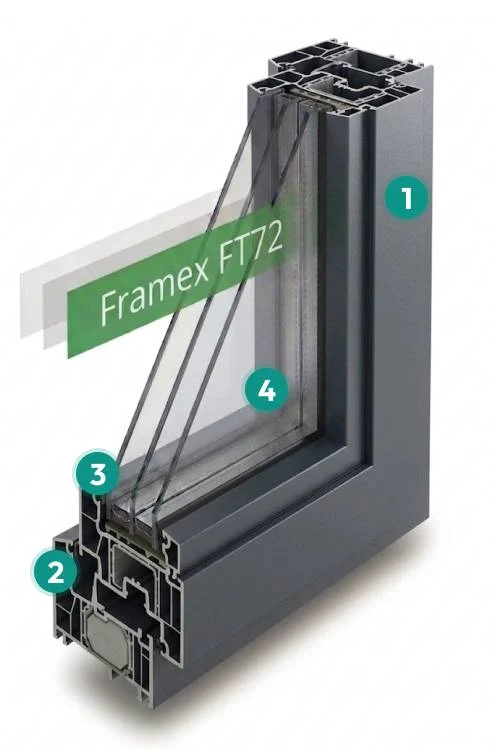

1
72mm Optimized Depth Platform
A balanced system architecture (72 mm frame depth and up to 80.4 mm window vent depth) providing optimal structural stability, allowing you to design expansive glazed installations and high-load entrance groups.
2
Advanced 34mm Structural Thermal Break
Features a wide 34 mm structural polyamide thermal break (28 mm for doors) to physically decouple the inner and outer aluminum chambers, ensuring exceptional thermal barrier integrity and massive energy savings.
3
High-Performance Multi-Contour Gaskets
Equipped with a highly durable multi-contour (three-layer for windows) EPDM synthetic rubber gasket system that completely eliminates air draft, protects from driving rain, and boosts acoustic insulation.
4
Deep 56mm Glazing Pocket
Confidently supports heavy-duty double or triple energy-saving glazing packages (ranging from 26 to 56 mm) to achieve outstanding thermal performance and absolute street-noise reduction.

System Benefits

Advanced Multi-Contour Sealing
Experience elite draft protection and superior thermal security. The high-performance multi-contour EPDM synthetic rubber gasket architecture perfectly insulates the interior, preventing warm air loss and completely cutting out street noise.
Heavy-Duty Structural Stability
Built for ambitious modern designs. The integration of high-strength structural profiles (like the 72MP1 reinforcement) gives the system massive load capacity, confidently supporting extra-large architectural configurations up to 4,000 mm high.
Seamless Hardware Integration
Ultimate flexibility for smooth, daily operation. The optimized profile design features an integrated hardware groove that supports premium tilt-and-slide or swing window mechanisms from leading global and cost-effective regional manufacturers.
Zero-Barrier Accessibility
Enhance your indoor-outdoor living transitions. The specialized 12 mm low-profile aluminum threshold profile offers a clean, ultra-low entryway that can be easily uninstalled or retrofitted, delivering a modern aesthetic without sacrificing energy efficiency.

Limitless Design Possibilities

Premium Colors & Textures Поменять текст под алюминиевые цвета

A curated collection of ultra-durable solid matte tones and genuine wood grain textures designed to complement any architectural style. Поменять текст под алюминиевые цвета

No data was found

Engineering Hub

Frame Depth:

72 mm (with up to 80.4 mm window vent depth for optimal structural stability and load capacity)

Profile Chambers:

3-chamber design (featuring a high-performance structural thermal break with multi-contour EPDM sealing)

Max Glazing Thickness:

Up to 56 mm (supports double and triple energy-saving glazing units for excellent heat and sound insulation)

Acoustic Insulation:

Superior sound shielding (achieved through deep glazing capacity and synthetic EPDM rubber gasket technology)

Thermal Performance:

U-Factor as low as 0.16 (optimized with a 34 mm structural polyamide thermal break to prevent energy loss)

Downloads

FRAMEX FT72 Comprehensive Technical Brochure & Spec Sheet

21 MB

CAD & BIM Models for Architects

Request CAD/BIM Assets

An Investment in Excellence

The FRAMEX FT72 system is more than just a window upgrade – it’s a long-term investment in high-load structural stability, premium thermal security, and versatile modern design. Get a comprehensive, custom estimate based on your architectural blueprints.

15+ Years of Experience

Certified US Installation

Direct European Supply

The Journey to Excellence

01.Consultation & Estimate

Send us your architectural blueprint, sketch, or project photos. Within 24 hours, we’ll provide a detailed, no-obligation quote.

03. Fabrication & Logistics

Custom-built in Europe to REHAU standards. We handle full cargo insurance and direct-to-site US delivery-no middlemen.

02. Precision Measurement

100% accuracy guaranteed. We conduct on-site laser measurements or guide your contractors via remote video consultation.

04. Installation & Warranty

Professional installation by our certified US teams. Enjoy total peace of mind with up to a 15-year official warranty.

01.Consultation & Estimate

Send us your architectural blueprint, sketch, or project photos. Within 24 hours, we’ll provide a detailed, no-obligation quote.

02. Precision Measurement

100% accuracy guaranteed. We conduct on-site laser measurements or guide your contractors via remote video consultation.

03. Fabrication & Logistics

Custom-built in Europe to REHAU standards. We handle full cargo insurance and direct-to-site US delivery-no middlemen.

04. Installation & Warranty

Professional installation by our certified US teams. Enjoy total peace of mind with up to a 15-year official warranty.

Ready to Set a New Standard for Your Home?

Architectural aluminum profiles aren’t just a structural choice; they’re a long-term investment in modern aesthetics, durability, and energy efficiency. Consult with an expert who knows advanced aluminum systems inside and out.
